Explanation of the symbols in the Search area.
In the device menu (in the search area) at the end of each row, you have 4 symbols when you have ADMIN rights.
In this article we will explain each symbol.
The View button.
When you push the view button you can see all the information of the compressor.
- Device properties
- Compressor Info
- Service counters
- Hours counters
The Edit button.
When you push the edit button you can modify the information of the compressor.
- Device properties
- Compressor Info
- Service counters
- Hours counters
The service counter button.
When you push the service counter button you can see the time left before the next service and you can also reset the service timers when a service has been done.
This is what you will see when you press the service timer button.
To Reset the time left after a service you need to push the reset button.
Reset Button.

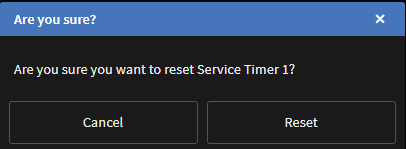

When the reset button has been pushed a message will pop-up.
This is an extra check to see that you reset the correct service counter.
After you have press the OK button you will see that the Time left has now the same value as the period. The service counter will now restart counting down to zero.
The Go to dashboard button.
By pressing the dashboard button you will see the data of the device.
You will come to the Health page on the Aircloud of the device.
This is what you will see when you press the dashboard button.
