The manuals for the TX-Tag can be accessed and downloaded via the hyperlinks below.



Windows 10 or a higher version must be installed on your PC when establishing a direct connection or link between the Airmatics-TAG devices (including the TX-Tag) and your PC or laptop.
The use of the Google Chrome browser is advised. The use of the Internet Explorer browser is not supported.
Additional Guidance for 4.8 IP Settings in the User Manual:

Encountering difficulties connecting to the TX-Tag after manually altering the IP address? It's crucial to recognize that adjustments on your PC or laptop are necessary as well.
If you find yourself unable to establish a connection with your TX-Tag, follow these steps:

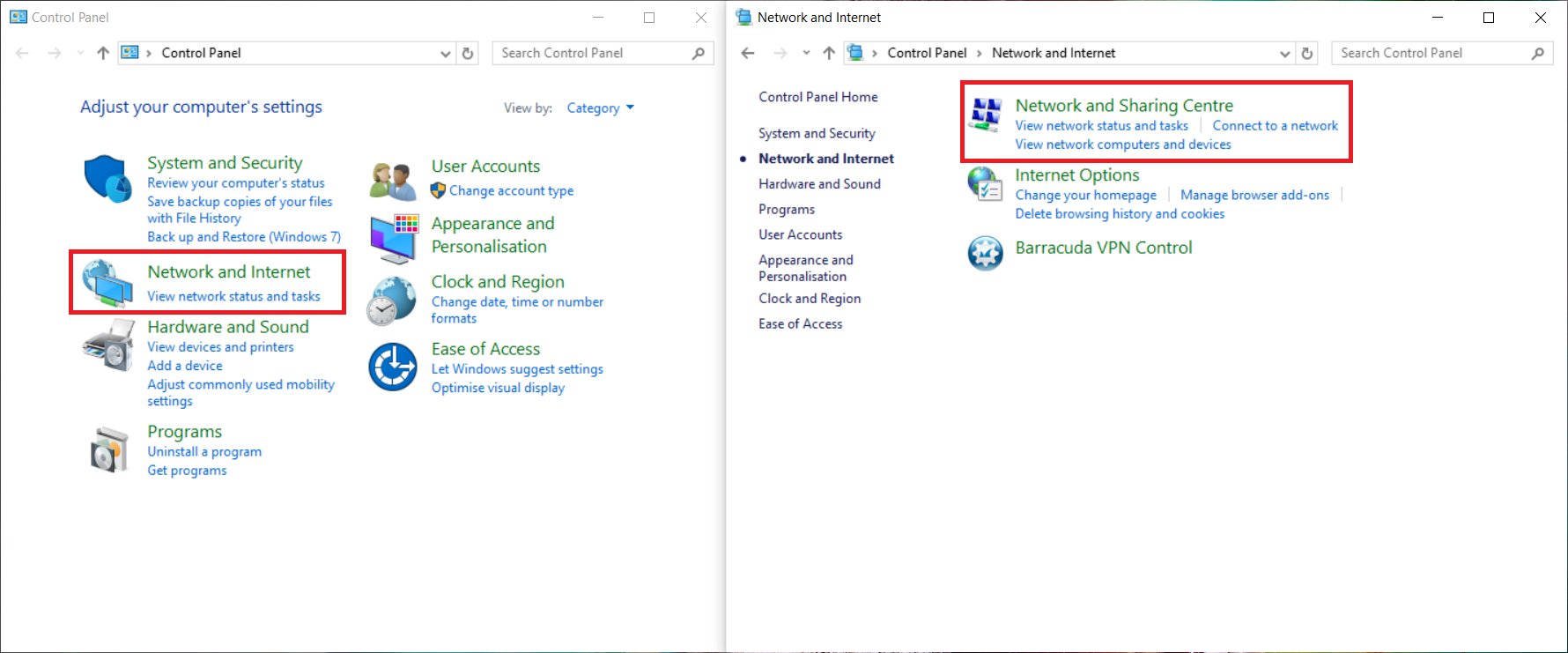

1. Navigate to your Network and Sharing Center.



      2. Access your connected Ethernet network and modify its IP address.
          Here's how:

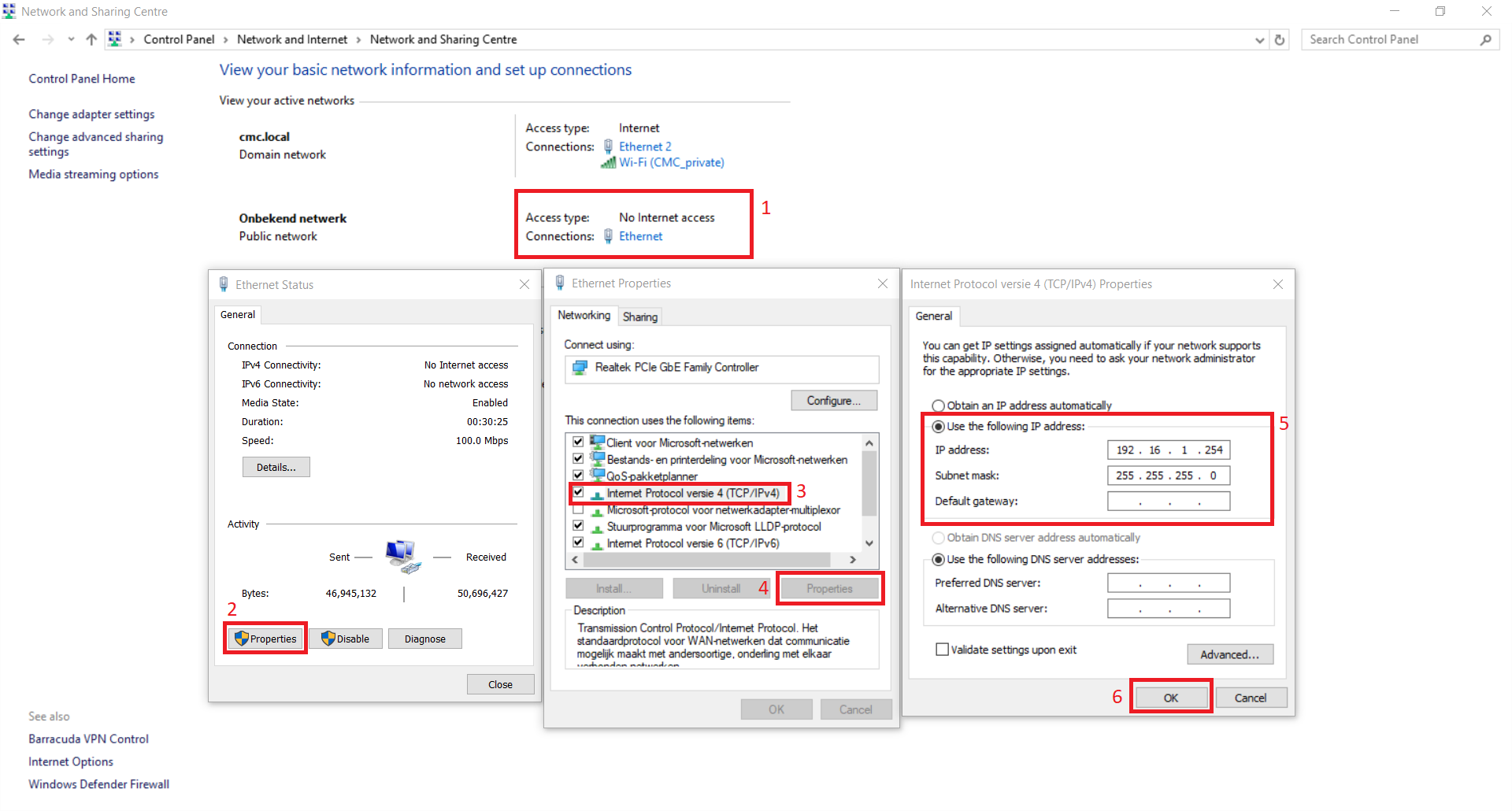

  1. Firstly, identify your connected Ethernet network.
  2. Then, click on Properties in the ensuing dialog box.
  3. Next, select the TCP/IPv4 protocol and click Properties again.
  4. Choose 'Use the following IP address' and input an IP address within the same subnet mask as your TX-Tag. For instance, if your TX-Tag bears the IP address 192.16.1.50, assign your PC or laptop an IP address like 192.16.1.254.
  5. Once the IP address adjustment is made, click OK to finalize. You should now be able to access your TX-Tag.

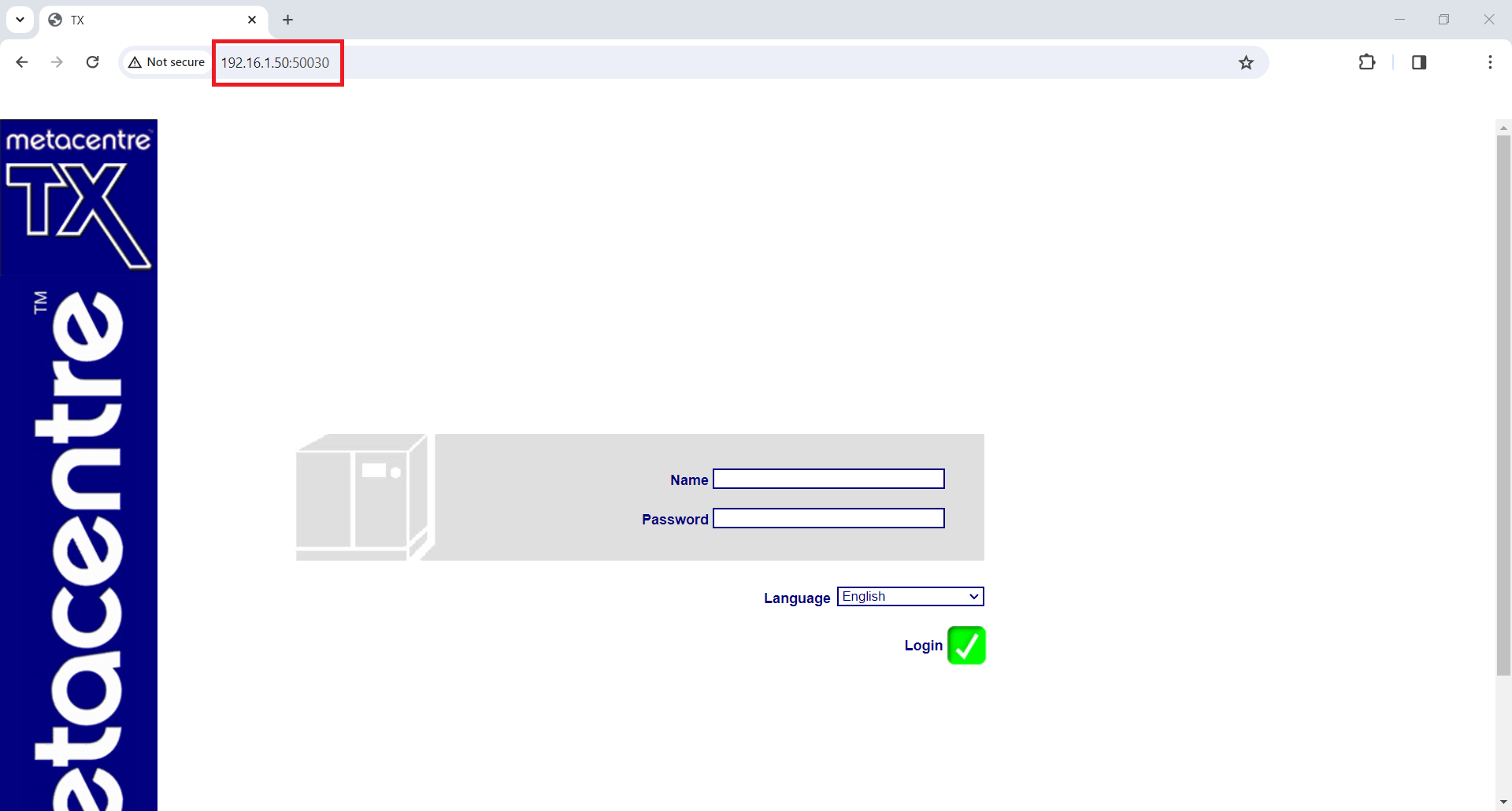

To access your TX-Tag, simply enter the IP address or utilize the provided Article and Serial numbers in your web browser.



With these adjustments, you're all set to connect to your TX-Tag and configure it as needed.

Pro Tip: Record your IP address for future access to the TX-Tag, and ensure it's kept in close proximity to the device itself.
