Understanding the "Measurement Data" Report on Aircloud
|

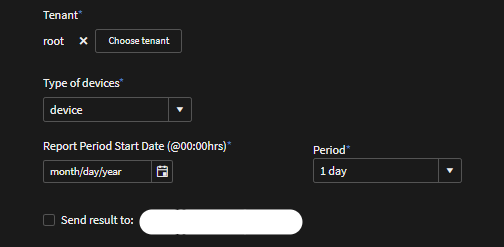

Column |
Label in Report |
Description |
Units |
|
A |
external_id |
Airtag serial number |
- |
|
B |
device_name |
Display name chosen in Aircloud ‘Device Settings’ |
- |
|
C |
timestamp |
Time of measurement |
- |
|
D |
outlet-pressure |
Outlet pressure on ‘Health’ dashboard |
mBar |
|
E |
internal-pressure |
Internal pressure on ‘Health’ dashboard |
mBar |
|
F |
differential-pressure |
Differential pressure on ‘Health’ dashboard. Calculated by subtracting outlet pressure from internal pressure |
mBar |
|
G |
outlet-temperature |
Outlet temperature on ‘Health’ dashboard |
mC |
|
H |
ambient-temperature |
Ambient temperature on ‘Health’ dashboard |
mC |
|
I |
motor-casing-temperature |
Motor casing temperature on ‘Health’ dashboard |
mC |
|
J |
air-flow |
Air-flow on ‘Performance’ dashboard |
l/s |
|
K |
efficiency |
Efficiency on ‘Performance’ dashboard |
kW/l/min |
|
L |
onload-hours |
Total hours in onload state |
Hours |
|
M |
offload-hours |
Total hours in offload state |
Hours |
|
N |
running-hours |
Total hours in running state |
Hours |
|
O |
service-timer-1 |
Hours until next service |
Hours |
|
P |
service-timer-2 |
Hours until next service |
Hours |
|
Q |
service-timer-3 |
Hours until next service |
Hours |
|
R |
service-timer-4 |
Hours until next service |
Hours |
|
S |
total-nr-of-start-events |
Total number of start events |
- |
|
T |
total-nr-of-load-events |
Total number of load events |
- |
|
U |
total-nr-of-offload-events |
Total number of offload events |
- |
|
V |
status |
4 = Asset is ready and stopped 9 = Asset if ready and running loaded 11 = Asset is ready and running offloaded |
- |
|
W |
particle-count-size-1 |
Number of particles size 0.1 μm < d ≤ 0.5 μm |
Counts/ m3 |
|
X |
particle-count-size-2 |
Number of particles size 0.5μm < d ≤ 1.0 μm |
Counts/ m3 |
|
Y |
particle-count-size-3 |
Number of particles size 1.0μm < d ≤ 5.0 μm |
Counts/ m3 |
|
Z |
air-out-total |
Total sum of Air Flow in ‘Performance’ tab |
l/s |
|
AA |
power-in |
Power In on ‘Performance’ tab |
Watts |
|
AB |
energy-in-total |
Total sum of Power in |
Watts |
|
AC |
energy-in-productive |
Total sum of power consumption in load state |
Watts |
|
AD |
energy-in-non-productive |
Total sum of power consumption in offload state |
Watts |
|
AE |
cost-total |
Total cost (units will depend on selected “Currency” in Device Settings) |
€/$/£ |
|
AF |
cost-productive |
Total cost in load state (units will depend on selected “Currency” in Device Settings) |
€/$/£ |
|
AG |
cost-non-productive |
Total cost in offload state (units will depend on selected “Currency” in Device Settings) |
€/$/£ |
|
AH |
emission-total |
Total CO2 emissions |
Kg/CO2 |
|
AL |
emission-productive |
Total CO2 emissions in load state |
Kg/CO2 |
|
AJ |
emission-non-productive |
Total CO2 in offload state |
Kg/CO2 |
|
AK |
aq-dp-dewpoint |
Dewpoint 1 in ‘Air Quality’ tab* |
mCtd |
|
AL |
aq-dp-dewpoint-2 |
Dewpoint 2 in ‘Air Quality’ tab* |
mCtd |
|
AM |
aq-dp-rel-humidity |
Dewpoint 1 relative humidity in ‘Air Quality’ tab* |
0.1%r.H. |
|
AN |
aq-dp-rel-humidity-2 |
Dewpoint 2 relative humidity in ‘Air Quality’ tab* |
0.1%r.H. |
|
AO |
aq-dp-temperature |
Dewpoint 1 temperature in ‘Air Quality’ tab* |
mC |
|
AP |
aq-dp-temperature |
Dewpoint 2 temperature in ‘Air Quality’ tab* |
mC |
|
AQ |
aq-af-airflow |
Air flow sensor 1 in ‘Air Quality’ tab* |
l/s |
|
AR |
aq-af-airflow-2 |
Air flow sensor 2 in ‘Air Quality’ tab* |
l/s |
|
AS |
aq-af-velocity |
Air flow velocity in ‘Air Quality’ tab* |
m/s |
|
AT |
aq-af-velocity-2 |
Air flow 2 velocity in ‘Air Quality’ tab* |
m/s |
|
AU |
aq-af-consumption |
Air flow consumption in ‘Air Quality’ tab* |
l/s |
|
AV |
aq-af-consumption |
Air flow 2 consumption in ‘Air Quality’ tab* |
l/s |
|
AW |
aq-af-temperature |
Air flow 1 temperature in ‘Air Quality’ tab* |
mC |
|
AX |
aq-af-temperature-2 |
Air flow 2 temperature in ‘Air Quality’ tab* |
mC |
|
AY |
aq-residual-oil-vapor |
Oil Vapor in ‘Air Quality’ tab* |
mg/m^3 |
|
AZ |
aq-pressure-1 |
Pressure 1 in ‘Air Quality’ tab* |
mBar |
|
BA |
aq-pressure-2 |
Pressure 2 in ‘Air Quality’ tab* |
mBar |
|
BB |
capacity-out-percentage |
Percent capacity of VFD |
% |
*Air Quality tab must be enabled in Device Settings and is not used in standard installations
**Units for cost will depend on the selected value for “Currency” in the Device Settings
